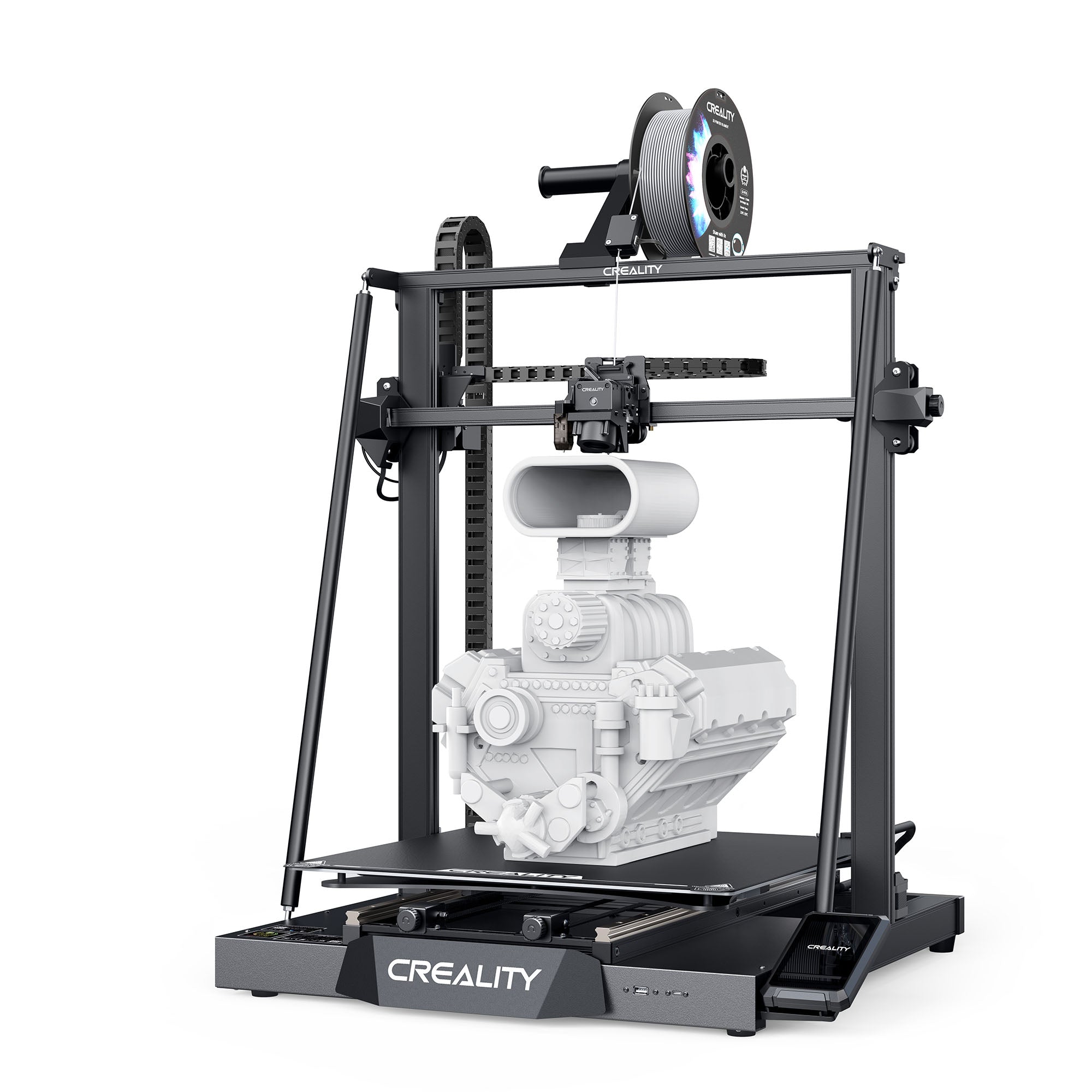

Creality CR-M4 3D Printer 450 x 450 x 470mm

Load image into Gallery viewer, Creality CR-M4 3D Printer 450 x 450 x 470mm

Creality CR-M4 3D Printer 450 x 450 x 470mm

Regular price: A$1,403.00
Sale price: A$1,403.00
Regular price: ~~A$2,099.99~~
Unit price: per

Option

Country

Quantity

Quantity must be 1 or more

CR-M4 Parameter :

Printing Technology: FDM

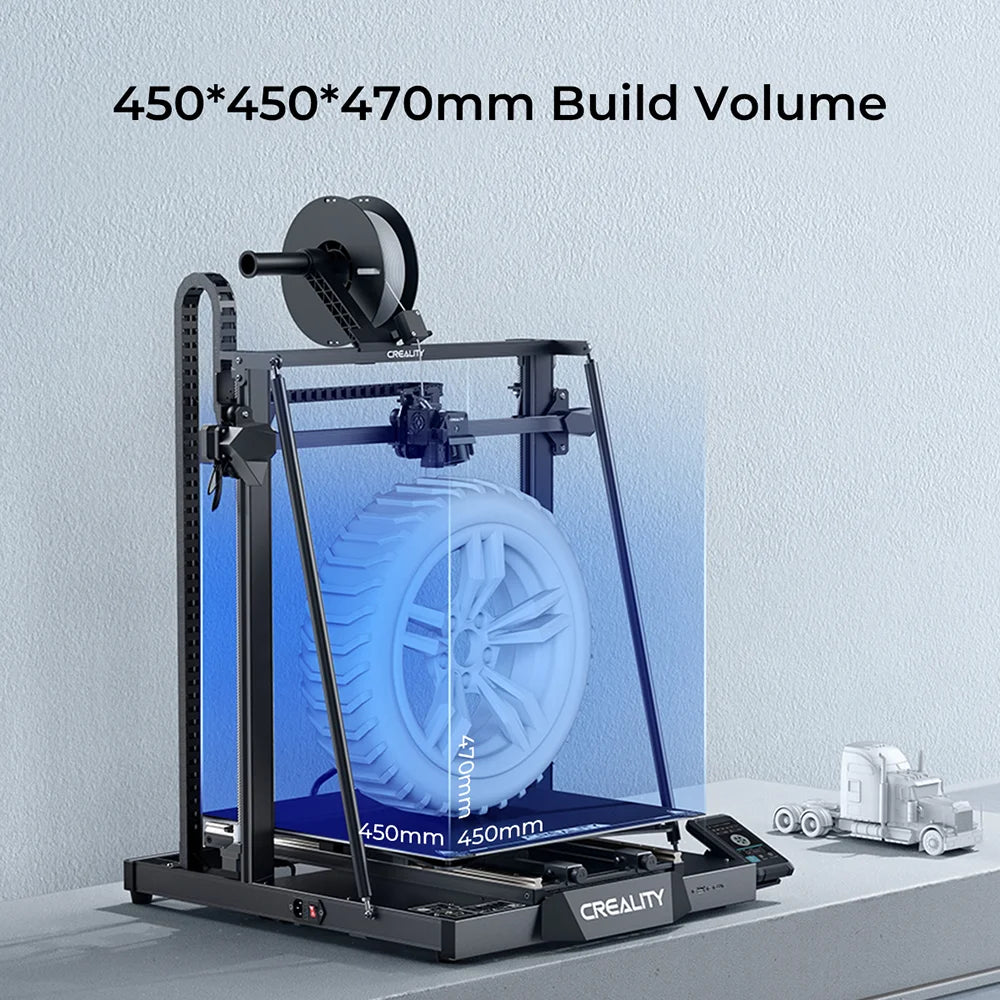

Build Volume: 450*450*470mm

Product Dimensions: 655*700*865mm

Package Dimensions: 790*760*300mm

Net Weight: 22.48KG

Gross Weight: 28.3KG

Printing Speed: ≤120mm/s

Printing Accuracy: ±0.1mm

Layer Height: 0.05-0.35mm

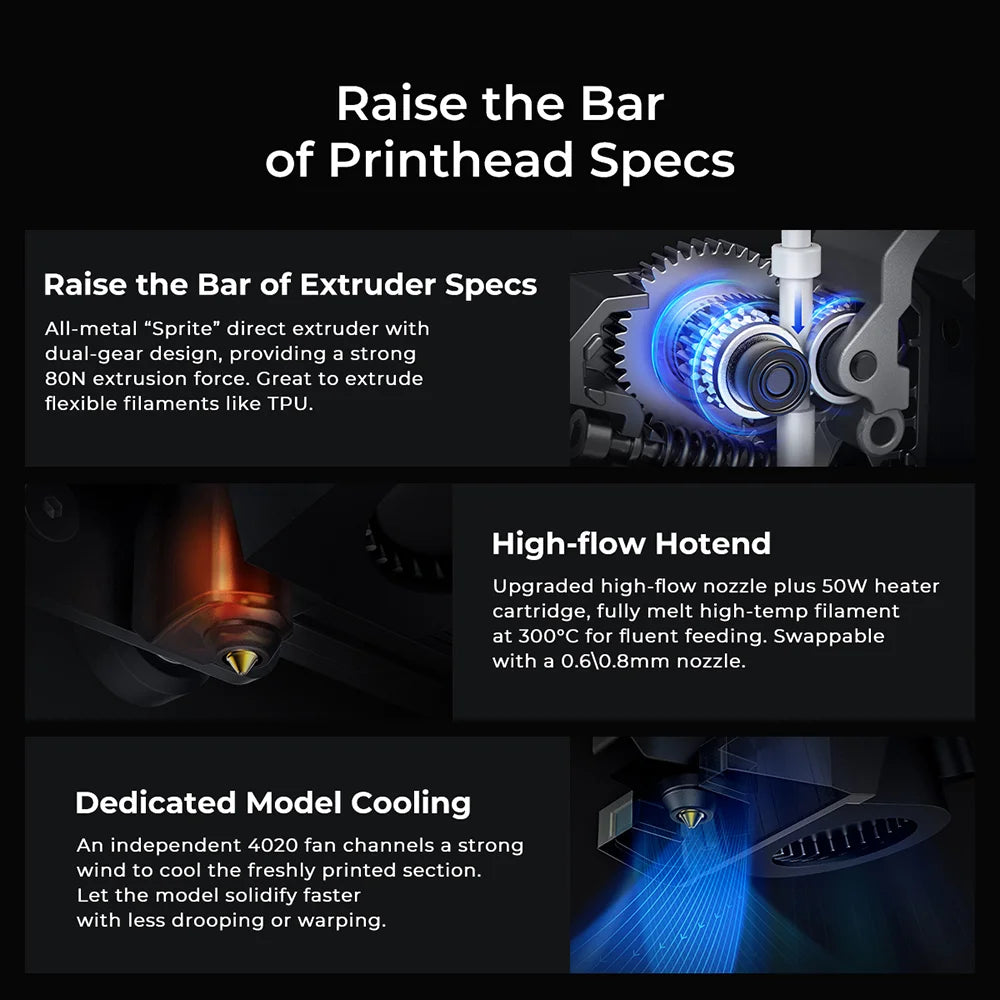

Extruder Type: "Sprite" dual-gear direct drive extruder

Extruder Material: All metal

Filament Diameter: 1.75mm

Z-axis Count: 2

Nozzle Type: Brass nozzle

Nozzle Diameter: Standard 0.4mm (compatible with 0.6/0.8mm)

Nozzle Temperature: ≤300°C

Heatbed Temperature: ≤100℃

Build Surface: PC spring steel sheet

Display Screen: 4.3-inch color touch screen

Mainboard: Integrated 32-bit silent mainboard

Power Loss Recovery: Yes

Filament Runout Sensor: Yes

Multi-printers Control: Yes

Sleep Mode: Yes

Rated Voltage: 100-240V~，50/60Hz

Rated Power: 800W

Slicing Software: Creality Print, Creality Slicer, Cura

File Formats: STL, OBJ, AMF

Supported Filaments: PLA, PETG, TPU, ABS, PLA-Wood, PA, PLA-CF

UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Chinese

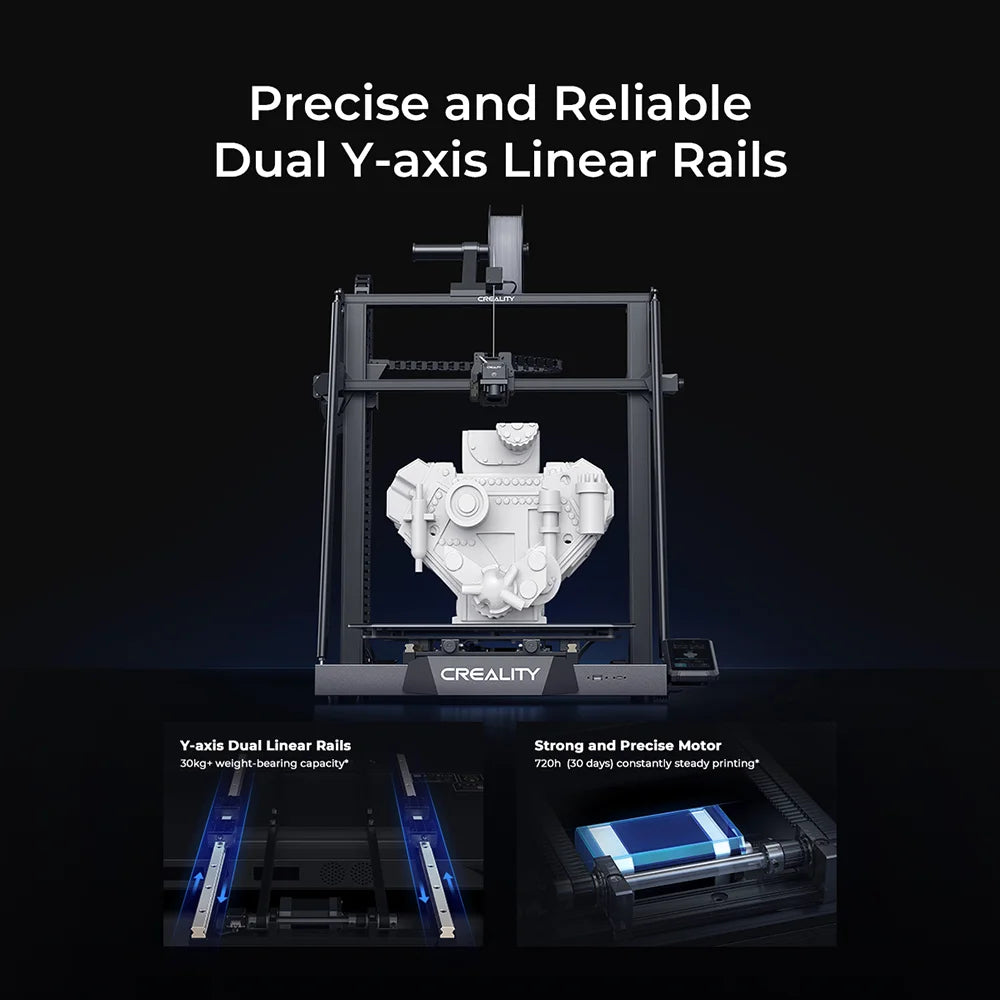

CR-M4: 450*450*470mm Large Size | Dual Y-axis Linear Rails | Sprite Direct Drive 3D Printer

Specification

Adhesion

It prints well but I'm having issues with adhesion and my models curling up. Mostly with abs . I have tried many settings with not much success.

So far I've had countless problems, all procedures followed correctly not used outside of guidelines in any way. Problems I've had have all been with the hotend.
Noticed that the creality store has minimal support for replacement parts for this model of printer. Hoping that I can resolve the issues and get the parts i recquire as soon as possible as I'd definitely love to continue using this tool as when it has printed well I've managed to produce strong and useful tools so it hasn't been all bad.

New to the game, But lost to learn and little to no instructions.

We have had more failed prints than successful ones.
The head scratched the printing surface on the first 6 prints. as we were trying the set up the Z axis initial settings.
Bed adhesion and warping is a problem with PLA, we tried 60 up to 75 degrees.
The head and silicon boot had been totally clogged twice already. Its a mess to clean up solidified filament!
Not for the faint hearted or 1st timer! Too many setting to fiddle with that are beyond the novice user.
Some supports crack and cause prints to fail.

We have yet to attempt a big print!
